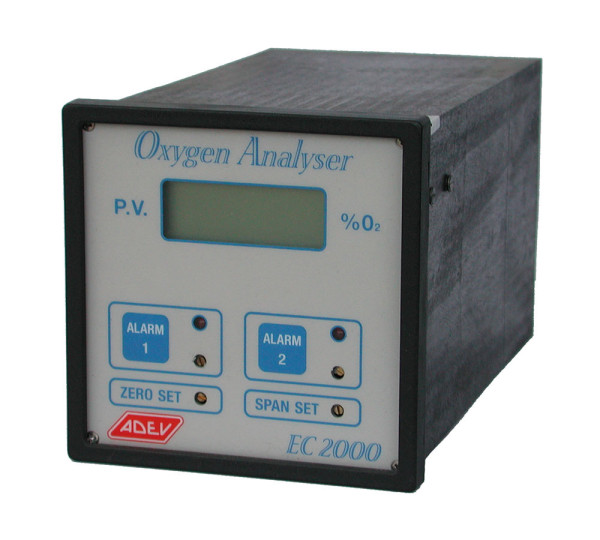

EC2000 Universal-Sauerstoffanalysator
EC2000 series is the entry level of O2 product range for the measurement of Oxygen in % range. Nevertheless, the cell has long operative life and high immunity to the presence of CO2, H2, HC and many other gases in the background.
EC2000 series is the entry level of O2 product range for the measurement of Oxygen in % range. Nevertheless, the cell has long operative life and high immunity to the presence of CO2, H2, HC and many other gases in the background.
Simple and reliable solution to measure O2 in both safe and hazardous area (ATEX) Zone 1 / Zone 21
Measureable Gas
Oxygen [O2]
Main Features
Cost-Effective Solution
- Low cost and excellent performance for this kind of instruments
- Fast response time
- Long lasting cell with high immunity to the presence of high quantities of CO2, H2, HC and others into the background
Very Easy to Use
- Digital read out with high-resolution 3½ digits display in mobile virgule
- Two alarms with field selectable threshold
- Front adjusting for easy calibration and settings
Easy Maintenance
- Very easy plug-in replaceable cell
- Easy calibrating by trimmers on front panel
European Compliance
- Low Voltage Directive 2014/35/EU
- EMC Directive 2014/30/EU
- Directive ATEX 2014/34/EU
ATEX
ATEX certification for Zone 1 / Zone 21 with protection mode:
II 2 G Ex d IIC T6 Gb
II 2 D Ex tb IIIC T85°C Db IP65
Performance Specification |
|
Accuracy: |
± 1.5% of span at calibration point |
Repeatability: |
± 0.03% of full scale (short term) |
Stability: |
± 1% of full scale |
Response Time: |
95% of final FS reading: 13 sec. |
Resolution: |
0.01% O2 below 10.00% O2 |
Flow Sensitivity: |
General purpose versions: < 0.5% of FS between 100-2000 cc/min. Ex-Proof housings: < 0.5% of FS between 500-1000 cc/min. |
Atmospheric pressure effect: |
± 1% of reading per 1% change in ambient pressure |
Ambient Temp. Influence |
< 0.06% of FS per °C |
Line Voltage Influence: |
± 0.01% of FS per 1% change of voltage |
Cell life: |
More than 2 years in air |
Display: |
3 ½ digits LCD display with14 mm high characters and mobile virgule |
Operative Specification |
|
Output: |
4-20 mA (non-isolated) proportional to the selected range (max. load 500 Ω) |
Alarms: |
2 alarms with SPDT contact ratings: 50 Vdc / 250 Vac; 0,5-4 A, 60 W/1000 VA |
Flow Rate: |
Sensing safe: 0 ÷ 5000 cc/min. Sensing Ex-Proof: 0 ÷ 1500 cc/min. |
Pressure: |
Set enough pressure to make sample flow at the specified flow rate. Vent to atmospheric pressure. |
Temperature: |
Operative & Storage: 0 ÷ +45°C |
Relative Humidity: |
90% max. |
Power Requirements: |
220 or 110 Vac; 50/60 Hz; 10 VA 24 Vdc, 5 W |
Wiring Connections: |
General purpose versions: Terminal board Ex-Proof housings: GK 1/2” holes (for cable grip or conduit) |
Pneumatic Connections: |
In / Out 1/8” NPT-F (for Ex-Proof versions, flame arrestors are included) |
Wetted Parts: |
Anticorodal, Tygon, Nylon, Silicon, Nitrile |
Weight: |
Electronics: 1 kg ; Cell safe: 0,5 Kg. Cell Ex-Proof housing: 3 Kg. Electronics + cell in Ex-Proof housing: 12 Kg. |
Applications
- Gas mixers
- Nitrogen generators
- Biogas and landfill gas
- Inerting
- Gas production industry
- Laboratories
- Air separation plants
- Chemical industry
…. and many others
Sampling System
The EC2000 needs an external sampling system able to deliver an almost clean sample gas to the analyser at the proper temperature, pressure and flow rate.
ADEV has a wide experience in process and can provide the EC2000 analyser combined with a sample and condition system designed for the specific application requirements. Contact ADEV for details.
Measuring Principle
The sensors are specific for Oxygen. They measure the partial pressure of Oxygen from low ppm to 100% levels in inert gases, gaseous hydrocarbons, helium, hydrogen, mixed gases, acid gas streams and ambient air.
Oxygen, the fuel for this electrochemical transducer, diffusing into the sensor reacts chemically at the sensing electrode to produce an electrical current output proportional to the Oxygen concentration in the gas phase. The sensor’s signal output is linear over all ranges and remains virtually constant over its useful life.
